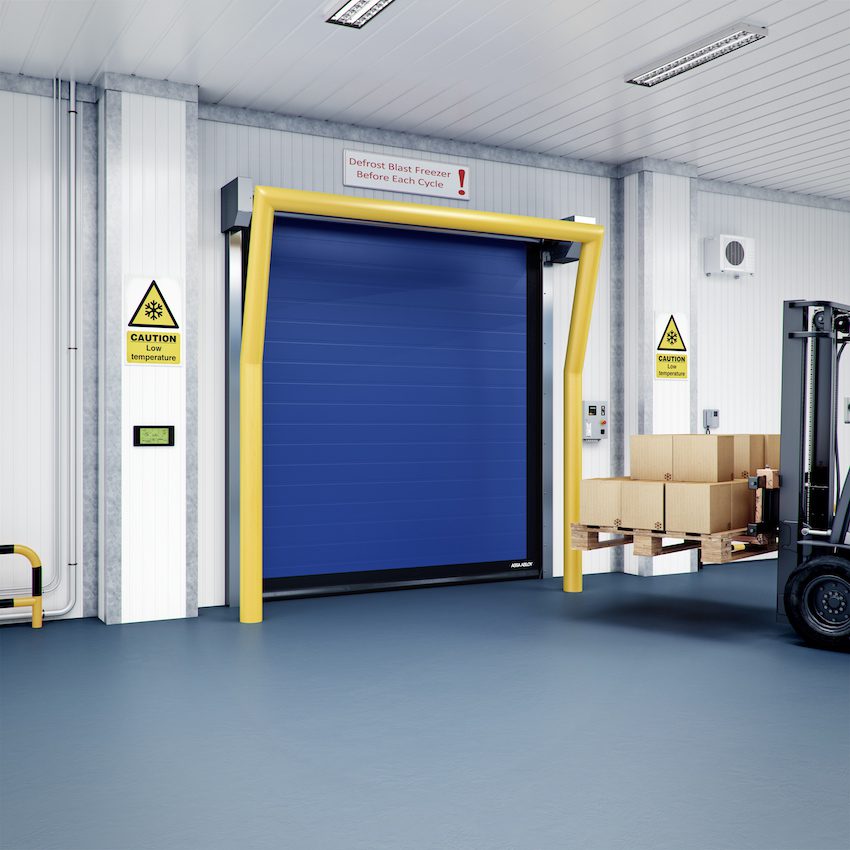

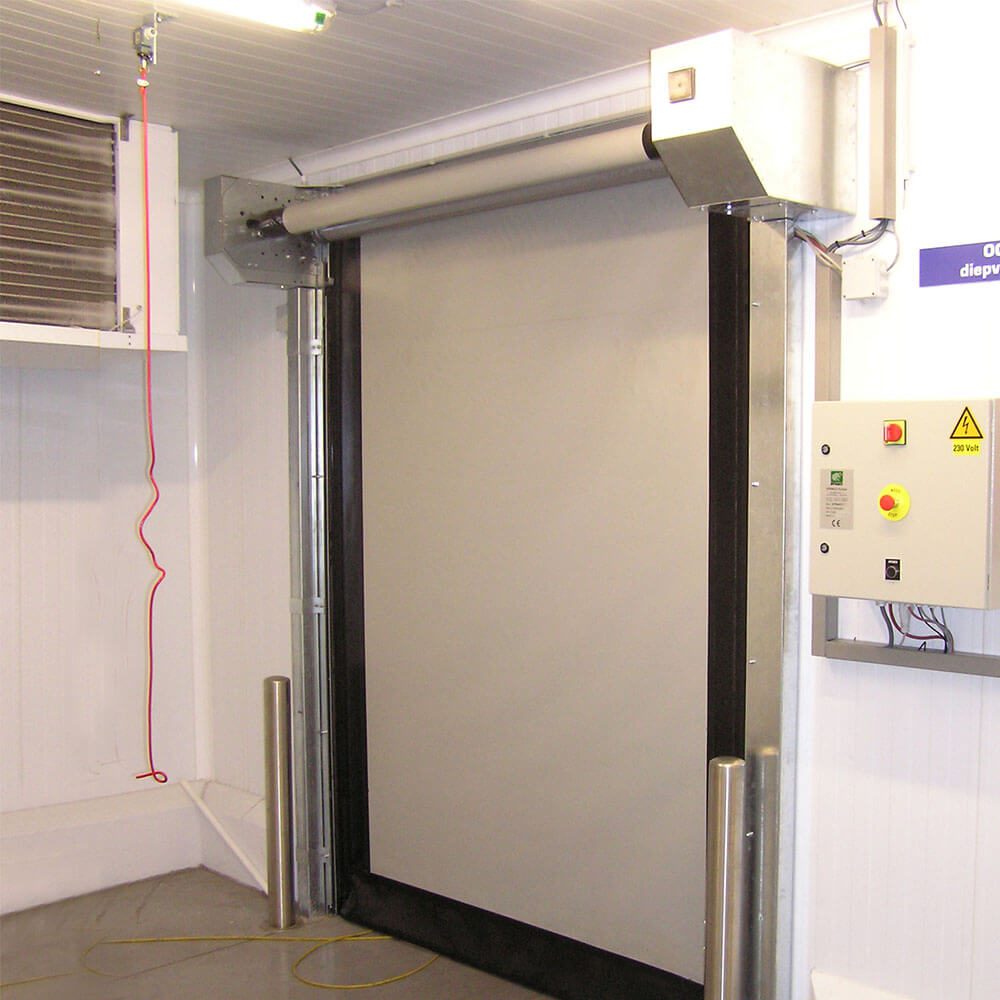

High Speed Freezer Door

The ASSA ABLOY HS9010PFR is designed for freezer environments, allowing efficient traffic flow while minimising temperature variations. The high operating speed combined with an excellent seal optimises the internal traffic flow and provides energy savings. The door can be set to open automatically every 20-25 minutes to avoid build-up of ice on side-guides and curtain.


High speed operation :Up to 2.4 m/s depending on size.

Break-away and self repairing : without intervention the curtain reintroduces itself automatically after a crash to reduce production downtime and maintenance.

User Safety : The absence of stiffeners combined with a flexible curtain that moulds itself protects users.

Unique door drive technology : The door drive system eliminates the need for weighted bottom bars or tension systems by actively driving the door curtain.

Advanced motor : Exceptional reliability and smooth operation is ensured by a motor driven by a frequency inverter. This technology ensures a soft start and stop, which increases the longevity of the motor considerably. It also allows faster opening/closing speed. You benefit from reliable operations around-the clock.

Excellent sealing : The unique side frame assembly provides virtually perfect sealing while eliminating blade and brush systems.
